Industrial high speed 3 phase gf105 blood tubular centrifuge for coconut oil waste oil herb with CE

Name: Industrial high speed 3 phase gf105 blood tubular centrifuge for coconut oil waste oil herb with CE
Brand: Zonelink
Price: 6 USD

Wholesale Industrial high speed 3 phase gf105 blood tubular centrifuge for coconut oil waste oil herb with CE from china suppliers

Place of Origin : Liaoning, China

Type : Centrifuge

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Bowl

Brand Name : Zonelink

Voltage : 380V

Power : 1.5KW

Weight : 300

Dimension(L*W*H) : 500*400*1200mm

Warranty : 1 Year

Key Selling Points : Flexible Manufacturing

Applicable Industries : Food & Beverage Factory, food industry

Showroom Location : None

Name : Centrifuge Separator

Function : Liquid Soild Centrifuge

Description : Clarification Separation

Application : Food Chemical Industry

Capacity : 500L/h based on water

Material : Stainless Steel 304/316L

Operation : Manual Solid Discharge

Rotating Speed : 20000rpm

Drum Diameter : 75mm

Packaging Details : Standard Exported Wooden Case Package

Port : china seaport

Supply Ability : 1000 Set/Sets per Year

Price : $6,000.00/sets 1-1 sets

Contact Now

Industrial high speed 3 phase gf105 blood tubular centrifuge for coconut oil waste oil herb with CE

Main Application

GQ type tubular centrifugeis mainly used for separating all kinds of suspension difficult to be separated,especially suitable for separation of solid-liquid suspension with light concentration,

heavy viscosity,fine particles and very small differential gravity of the two phases.For example clarifying all kinds of fluid, glucose chlorhexidine, malic acid, oral solution, radix soghorae tonkinensis, coal tar and graphite; extracting protein, algae, saponin, pectin, sirup; blood separation,settlingmycelia and all kinds of glucose; refining paint, resin, and latex solution.

Painted ink separation

Bacterial broth separation

Silicon powder separation

Structure & Principle

Tubular centrifuge separator is high speed centrifuge with strong capacity. The main parts: machine body, driving part,bowl,liquid collecting pan, liquid-in bearing seat.The material is sprayed onto the bowl from the inlet on the bottom and strongcentrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the

bowl and then separated because of the different gravity by the centrifuge force.
GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl,and forms the sludge. And it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl.The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise.

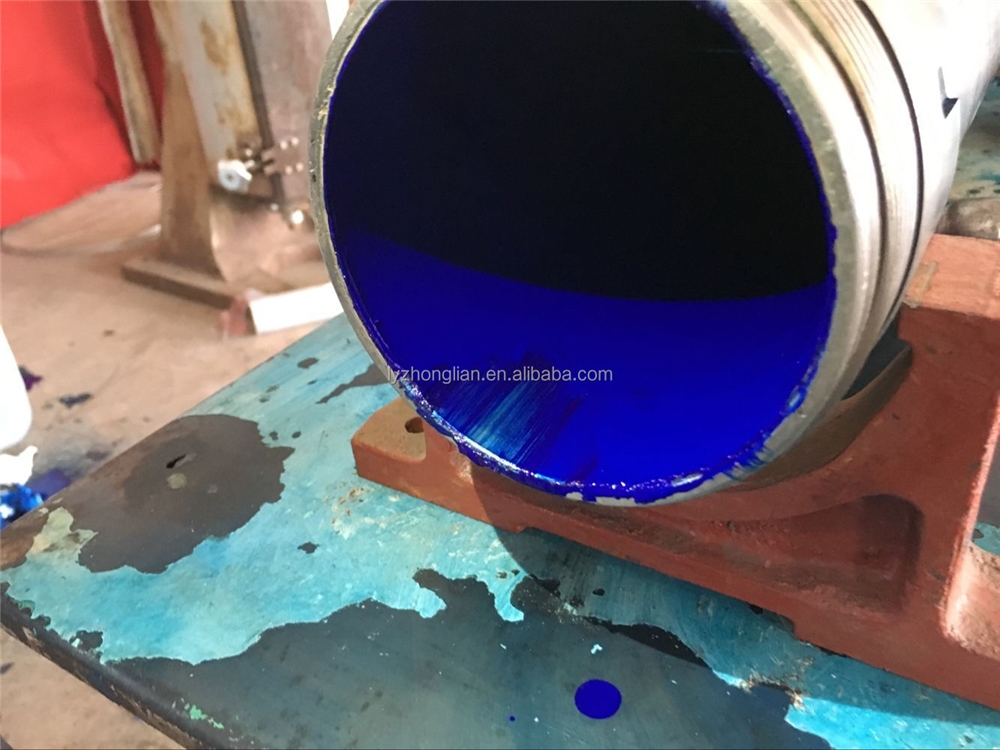

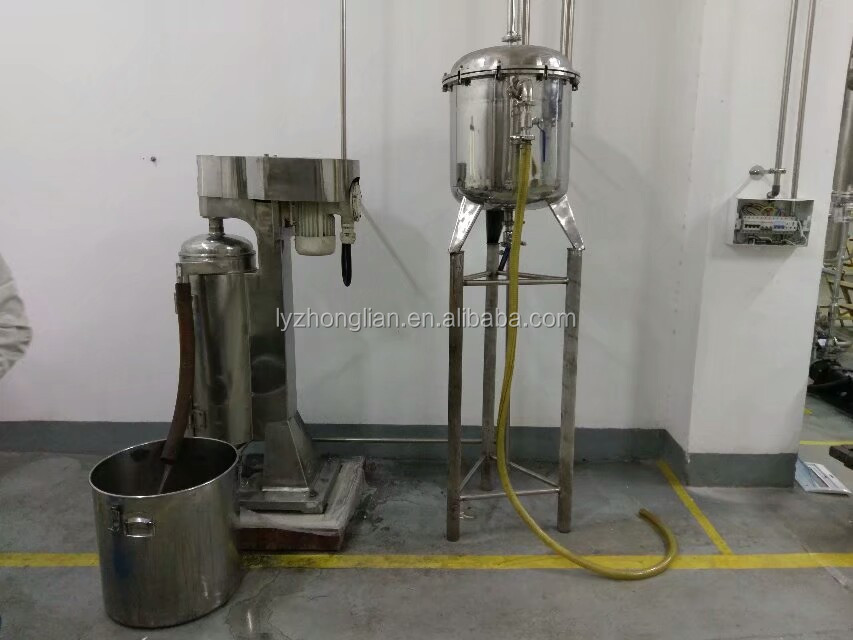

Detailed Images

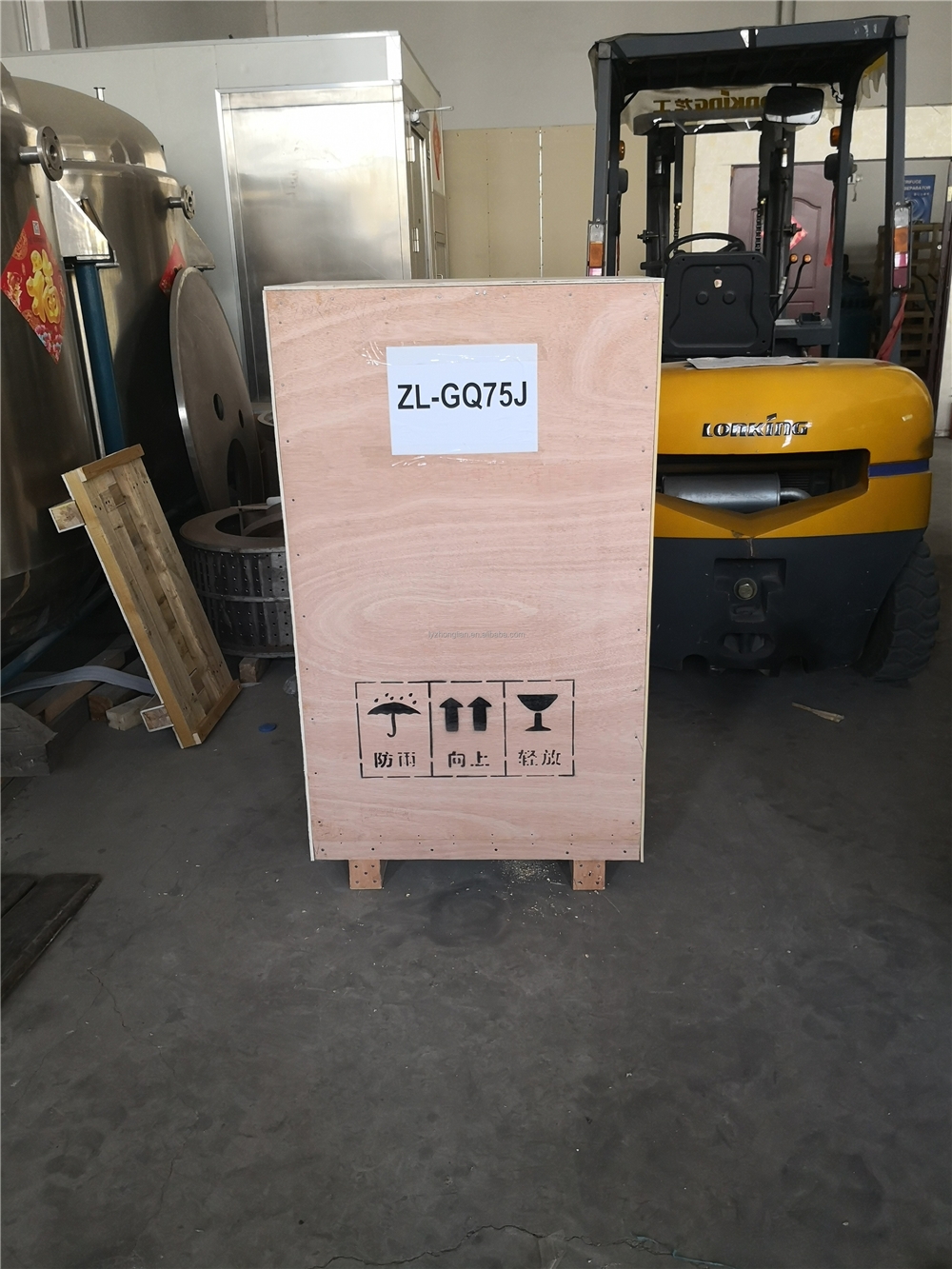

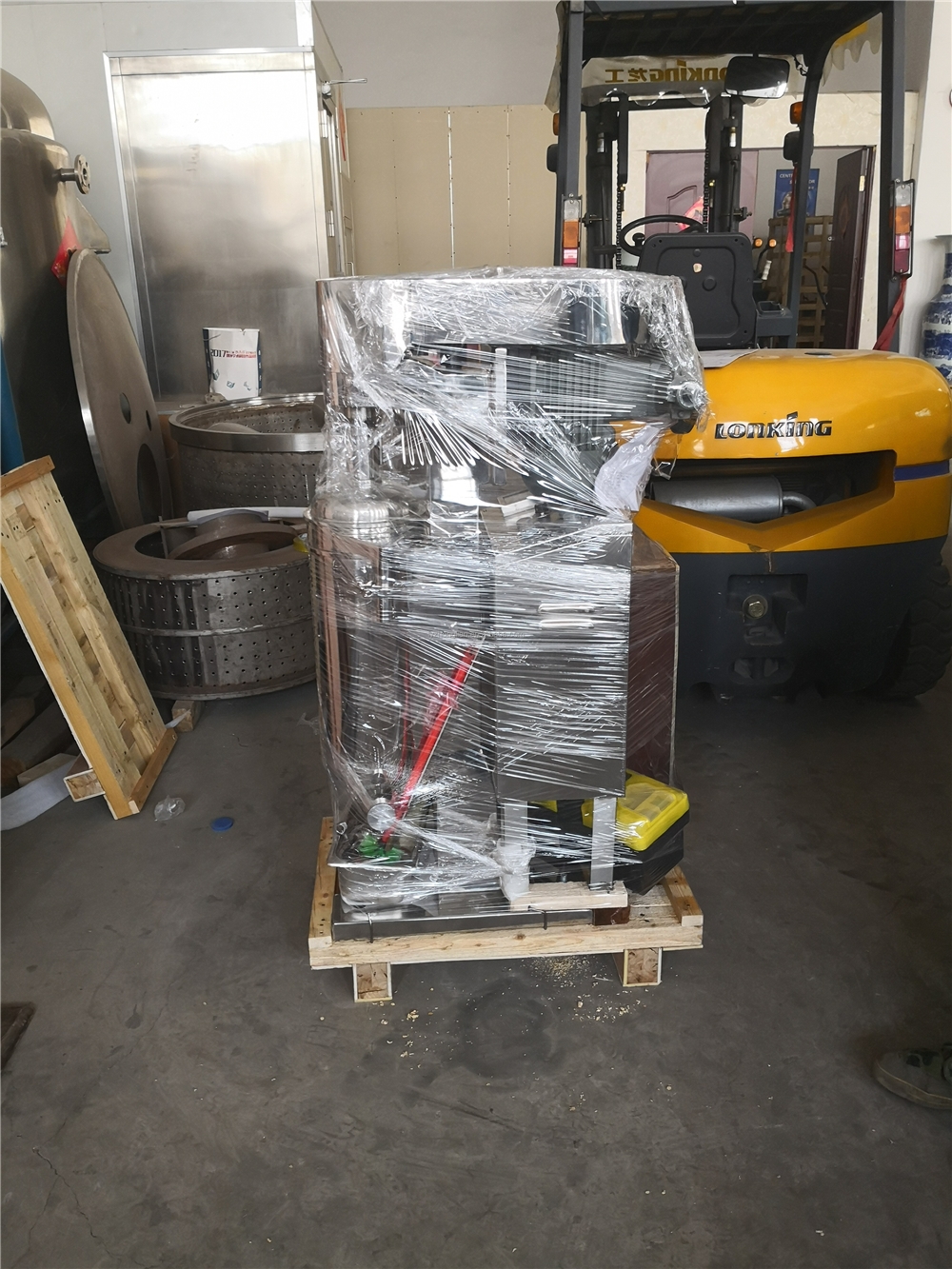

Package & Shipping

Industrial high speed 3 phase gf105 blood tubular centrifuge for coconut oil waste oil herb with CE Images
